- Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
- Features

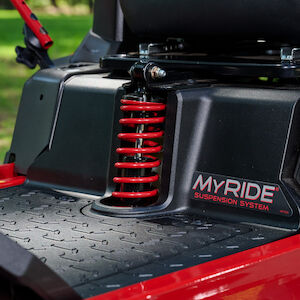

Game Changer. Back Saver.
Save yourself from a rough terrain-driven beating with our patented MyRIDE® Suspension System. Sitting isolated from the mower frame, it'll save your back and accelerate your mow.
Proven by Pros. Perfected for You.
Over 100 years of Pro DNA course through the veins of every mower we build. You get the same commercial-grade features that pros rely on for your own pristine, professional-looking lawn.

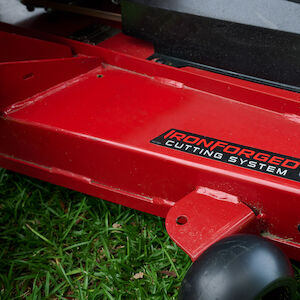

Turf Tough. Bull Strong.
Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way. With bulletproof material-reinforced belts, a beefy leading edge and huge spindles, this beast is built to last.

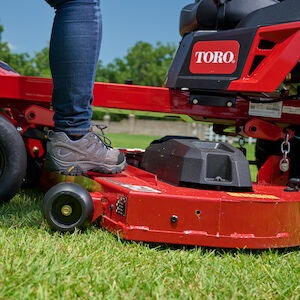

Sturdy Step-On.
The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.

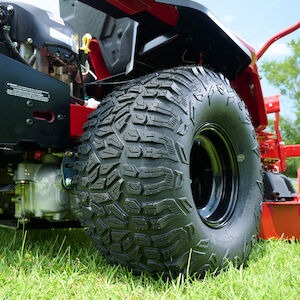

Traction for Any Terrain.
Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.

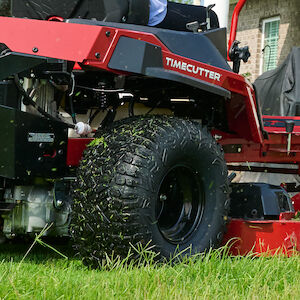

Shut Down Sprayback.
There's nothing good about getting blasted with filthy backsplash. That's why spray blocking fenders come standard—to keep tire spray off your engine, and more importantly, you.

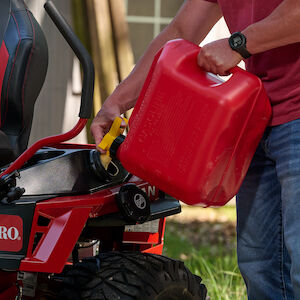

Better Fill. Fewer Spills.
Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Category
Specification
Engine 23 hp Kawasaki FR691V 726cc Engine Brand Kawasaki Engine Horsepower 23.0 hp Engine Power (kW) 17.2 kW Engine Displacement 726 cc Cooling System Air Cooled Crankshaft 1" (25 mm) w/ Steel Protector Air Filter Standard Kawasaki Air Cleaner Fuel Type Gasoline Fuel Capacity 5 gal. / 18.9 L / 20 Qt. Recommended Oil Type 10W-30 Start Type Electric CARB Compliant Not CARB Compliant Drive System Hydrostatic Transmission Dual Hydrostatic HG-EZT2200 Drive Type Rear-Wheel Drive Forward Mowing Speed Up to 7.0 mph / 11.2 kph Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel Deck Design 10-Gauge Steel IronForged® Deck Material 10 Gauge Steel Deck Size 54 in / 137 cm Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm Foot Operated Height of Cut Standard Blade Tip Speed 17,700 ft/min / 5,395 m/min Cutter System Steel Cutting Blade Number of Blades 3 Discharge Chute Side Anti-Scalp Wheels 3 Standard Spindle Housing Cast-Aluminum Spindle Bearings Maintenance-Free Greasable Bearings Yes Clutch Electromagnetic Comfort Platform MyRIDE® Suspension System Seat 19" Gaming Style Armrests Optional Steering Controls Twin Lever Steering Dampeners Standard Dampers Hitch Bracket Standard Hour Meter Optional Lighting Optional Roll-Over Protection System (ROPS) Optional Cup Holder Standard Terrain Type Flat with Obstacles Caster Tires (Front) 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic Drive Tires (Rear) 20 in. x 10 in. - 8 in. (51 cm x 26 cm - 20.3 cm) Tires 12 in. x 6 in. (Front), 20 in. x 11 in. (Rear) Washout Port Standard Bagger Capacity 4.9 bushels Weight 684 lbs / 310.3 kg Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm Product Type TimeCutter Max MyRIDE Product Use Residential - Disclaimer:
23 HP gross (726 cc) at 3,300 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
† See retailer for warranty details.
‡ Specifications subject to change without notice and without incurring obligation. Products shown for demonstration purposes only; actual models may vary in design, attachments, and safety features.

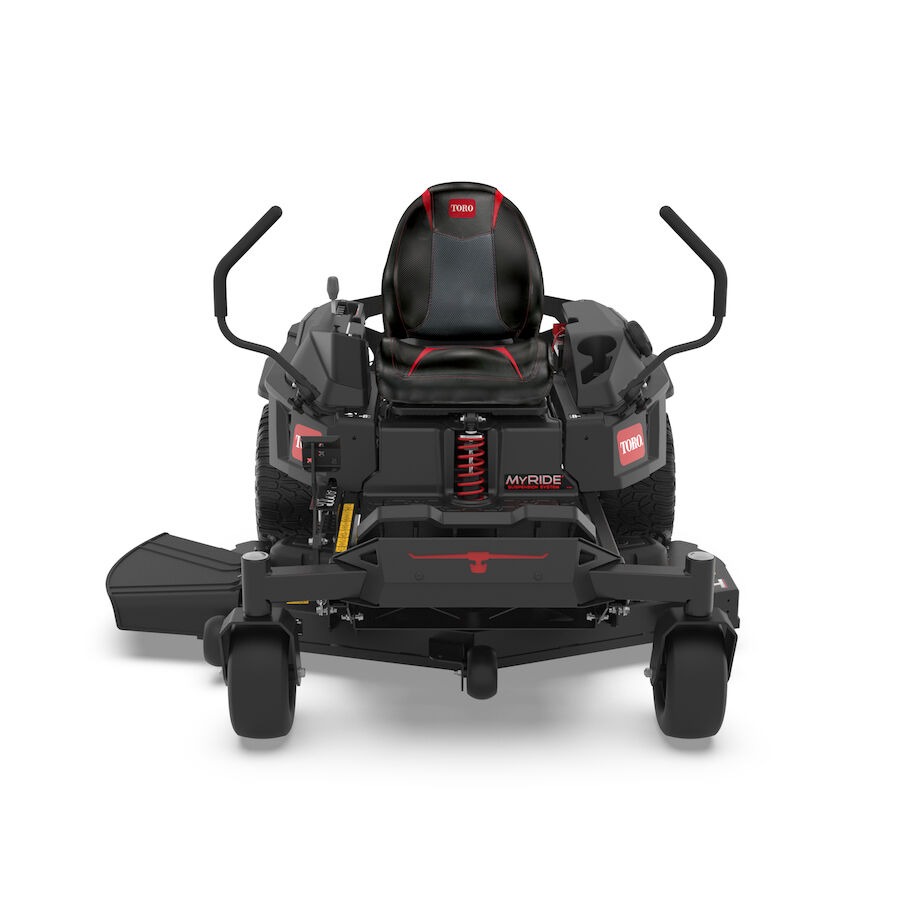

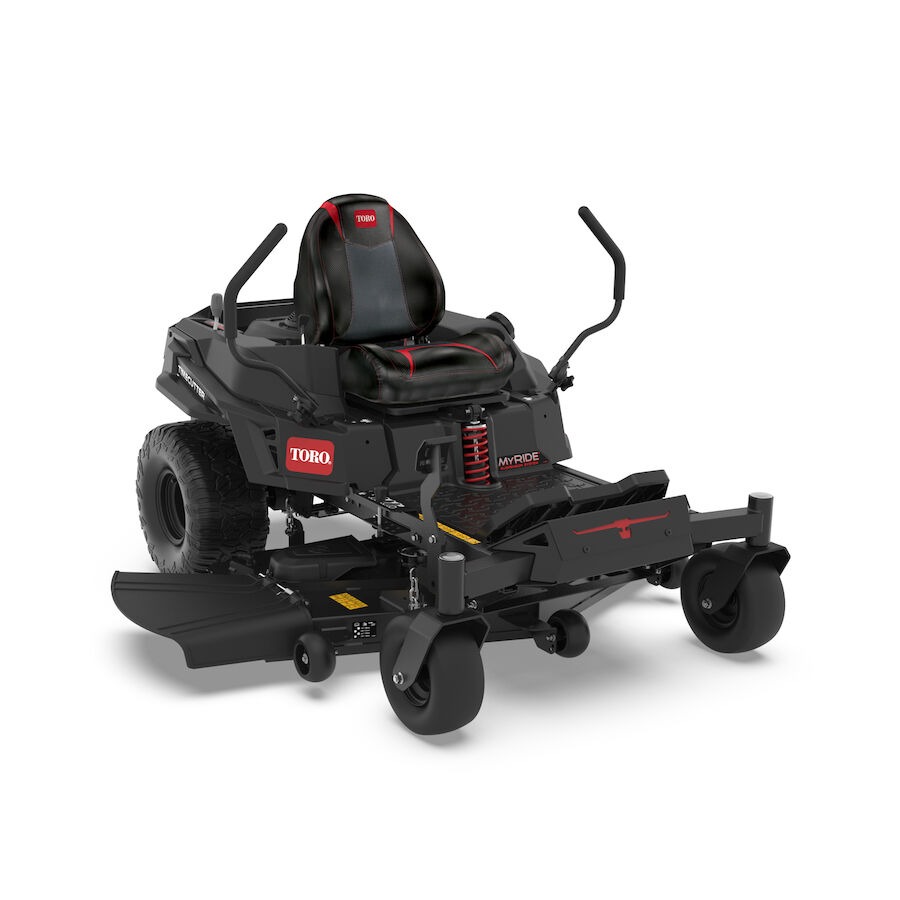

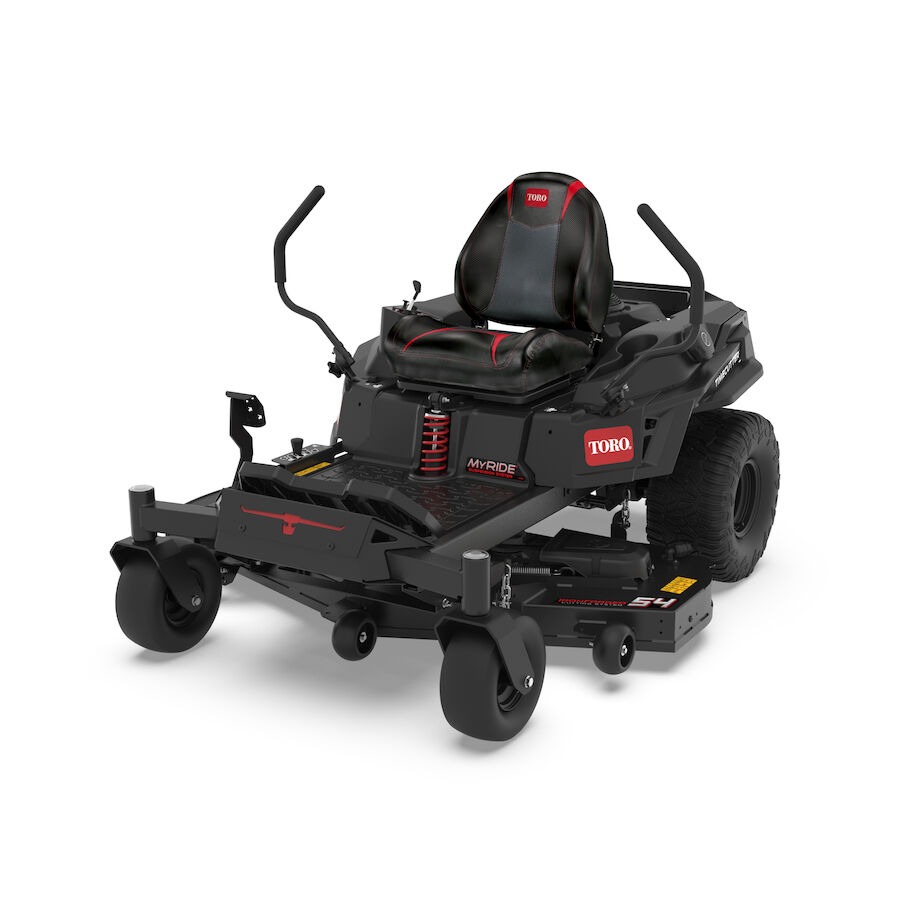

54 in. (137 cm) TimeCutter® Max Havoc™ MyRide® Zero Turn Mower
$ 2,349
